ServiceNow Integration for Runbooks

Harness AI SRE offers comprehensive integration with ServiceNow, enabling both outbound (AI SRE to ServiceNow) and inbound (ServiceNow to AI SRE) incident management and tracking.

Overview

ServiceNow integration enables your runbooks to:

• Create and update incidents
• Track incident progress
• Manage CMDB records
• Automate workflow transitions
• Sync incident updates bidirectionally

Connector-Based Integration

Prerequisites

• ServiceNow admin access
• Instance URL
• Service account credentials
• Harness Project Admin role

Setup Steps

1. Navigate to Settings → Connectors
2. Click + New Connector
3. Select ServiceNow
4. Configure authentication:
   • Instance URL
   • Username
   • Password/OAuth credentials
5. Test connection

Required Permissions

• incident_manager role
• itil role
• rest_service role
• web_service_admin role

Using ServiceNow in Runbooks

Incident Creation

- Action Type: ServiceNow
  Operation: Create Incident
  Category: "Infrastructure"
  Impact: "[incident.severity]"
  ShortDescription: "[incident.service] Incident"
  Description: |
    Impact: [incident.description]
    Service: [incident.service]
    Environment: [incident.environment]

Update Incident

- Action Type: ServiceNow
  Operation: Update Incident
  Number: "[servicenow.number]"
  Fields:
    Priority: "[incident.severity]"
    Assignment_group: "SRE Team"
    Comments: "Automated response initiated"

State Management

- Action Type: ServiceNow
  Operation: Update State
  Number: "[servicenow.number]"
  State: "In Progress"
  WorkNotes: "Incident response team engaged"

Directional Synchronization with AI SRE

Harness AI SRE uses runbook triggers to update ServiceNow when incident fields change. When a field in AI SRE changes, a runbook can automatically update the corresponding ServiceNow incident.

Field Change Triggers

Configure runbooks to trigger on field changes:

• State changes
• Priority updates
• Severity modifications
• Assignment changes

Example: State Change Sync

Trigger:
  Type: Field Change
  Field: state

Actions:
  - Action Type: ServiceNow
    Operation: Update State
    Number: "[servicenow.number]"
    State: "[incident.state]"
    WorkNotes: "State updated from AI SRE"

Example: Priority Sync

Trigger:
  Type: Field Change
  Field: priority

Actions:
  - Action Type: ServiceNow
    Operation: Update Incident
    Number: "[servicenow.number]"
    Fields:
      Priority: "[incident.priority]"
      WorkNotes: "Priority updated from AI SRE"

Advanced Features

Bidirectional Sync (Coming Soon)

Future Capability

The following features are planned for future releases:

• Real-time incident synchronization
• Work notes mirroring
• CMDB integration
• Workflow state mapping

Planned Capabilities

1. Incident Sync

   • ServiceNow → Harness AI SRE status mapping
   • Automatic state transitions
   • Priority synchronization

2. Work Notes Sync

   • Bidirectional updates flow
   • Attachment synchronization
   • User mapping

3. CMDB Integration

   • CI relationship mapping
   • Impact analysis
   • Service dependency tracking

Best Practices

Incident Management

• Use standard categorization
• Include business impact
• Link configuration items
• Maintain SLA tracking

Workflow Integration

• Define clear state mappings
• Document transition rules
• Set up appropriate triggers
• Monitor sync status

Field Configuration

• Map essential fields
• Use custom fields appropriately
• Document field purposes
• Validate field values

Common Use Cases

Major Incident Management

1. Create ServiceNow incident
2. Assign response teams
3. Track resolution progress
4. Update stakeholders

Change Management

1. Create change requests
2. Track approvals
3. Document implementations
4. Update CMDB

SLA Compliance

1. Monitor response times
2. Track resolution progress
3. Generate reports
4. Escalate as needed

Troubleshooting

Common Issues

1. Authentication Failures

   • Verify credentials
   • Check roles/permissions
   • Confirm instance access

2. Field Update Errors

   • Validate field names
   • Check required fields
   • Verify field formats

3. State Transition Issues

   • Check workflow rules
   • Verify state mappings
   • Confirm permissions

Creating Incidents in AI SRE from ServiceNow

This section walks you through setting up an integration in Harness AI SRE to receive incident data from ServiceNow. By following these steps, you'll be able to automatically create incidents in Harness AI SRE based on ServiceNow incidents.

Integration Setup Process

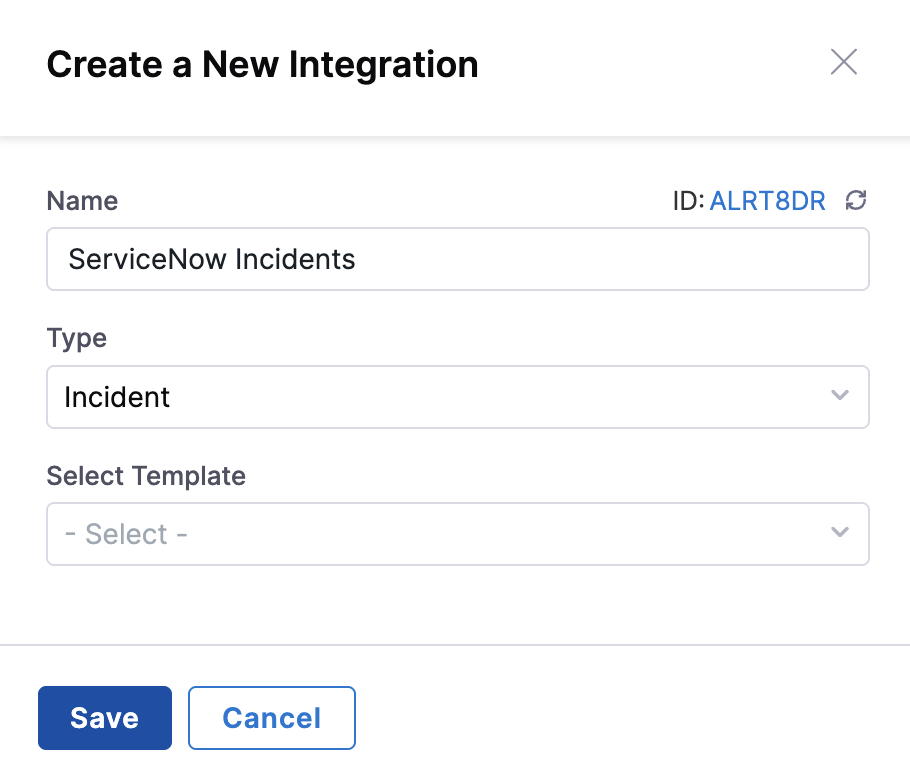

1. Create the Integration in AI SRE

1. Navigate to Integrations in AI SRE.
2. Click New Integration.
3. Set the following values:
   • Name: ServiceNow Incidents
   • Type: Incident
   • Template: Leave blank (not yet available)

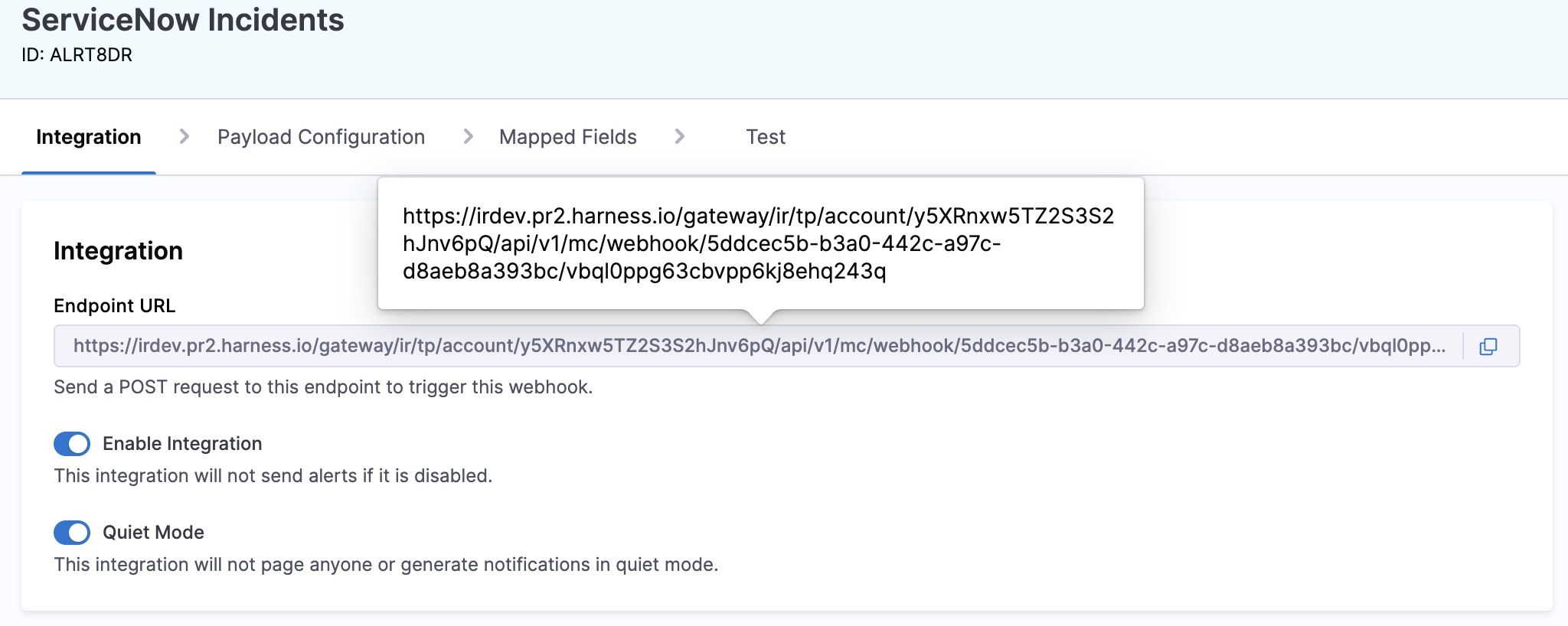

4. Copy the generated Webhook URL.

2. Test the Integration with cURL

Use the following curl command to test sending incident data from ServiceNow. Replace YOUR_URL with the URL you copied from AI SRE.

curl -X 'POST' 'YOUR_URL' \
  -H 'host: IR' \
  -H 'user-agent: ServiceNow/1.0' \
  -H 'x-snc-integration-source: c9fdbaf8ebbce694c040fddacad0cd90' \
  -H 'content-type: application/json' \
  -d $'{
    "number": "INC0010166",
    "reported_by_email": "admin@example.com",
    "opened_at": "2025-07-08 18:08:05",
    "impact": "1",
    "urgency": "1",
    "short_description": "Testing SNOW Creation",
    "description": "Testing SNOW Creation",
    "category": "software",
    "priority": "1",
    "sys_id": "096654f28362ea10ea8ff3a6feaad338",
    "subcategory": null,
    "state": "2",
    "incident_url": "https://dev319566.service-now.com/nav_to.do?uri=/incident.do?sysparm_query=number=INC0010166"
  }'

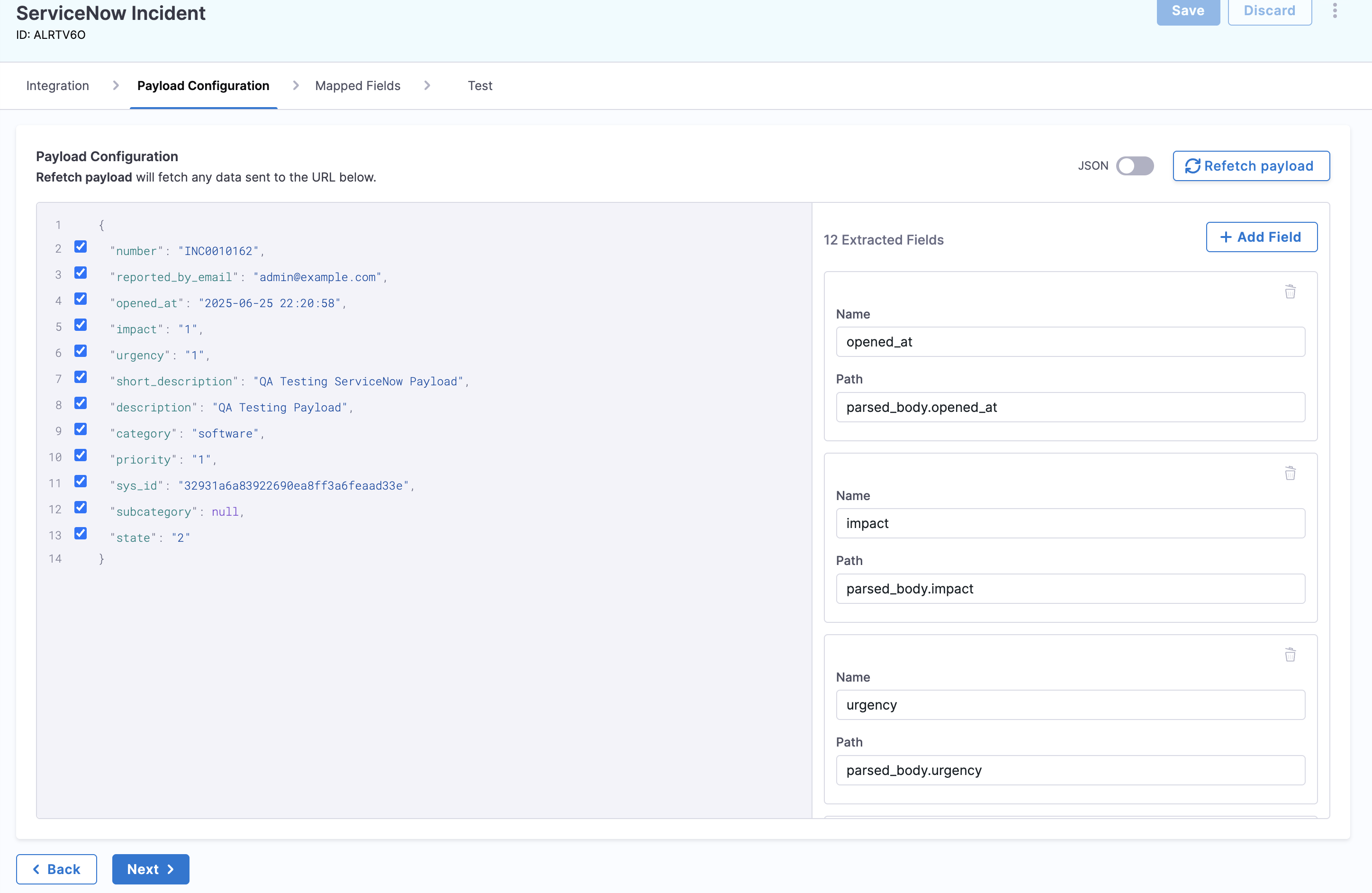

3. Configure Payload in AI SRE

1. In AI SRE, go to the newly created ServiceNow Incidents integration.
2. Click Payload Configuration.
3. Click Refetch Payload to load the fields.
4. Select all available values for use in AI SRE.

custom fields

If custom ServiceNow fields are not showing up, update your ServiceNow Business Rule to include those fields in the payload.

Data Mapping: ServiceNow to AI SRE

State → Status Mapping

ServiceNow Value	ServiceNow Label	AI SRE Status
1	New	New
2	In Progress	Investigating
3	On Hold	Monitoring
4	Resolved	Closed
5	Closed	Closed
6	Canceled	Closed

Priority → Severity Mapping

ServiceNow Value	ServiceNow Label	AI SRE Severity
1	Critical	SEV0:Critical
2	High	SEV1:Major
3	Moderate	SEV2:Moderate
4	Low	SEV3:Minor
5	Planning	SEV4:Cosmetic

mapping usage

Use these mappings when parsing state and priority from the webhook payload to translate ServiceNow values into meaningful context within AI SRE.

Creating Webhooks in ServiceNow

Send data from ServiceNow to Harness AI SRE using a Business Rule and RESTMessageV2. This integration enables automatic incident creation and updates in Harness AI SRE when ServiceNow incidents are created or modified.

Setup Instructions

1. Navigate to Business Rules

   • Go to System Definition > Business Rules
   • Click New

2. Configure the Business Rule

   • Name: Send Incident to Harness AI SRE
   • Table: Incident
   • Active: ✅
   • Advanced: ✅

3. Set When to Run

   • When: After
   • Insert: ✅
   • Update: ✅
   • (Optional) Add filter conditions to limit which incidents trigger the webhook

4. Add Script

   • Go to the Advanced tab and paste the following:

(function executeRule(current, previous /*null when async*/ ) {
    try {
        var r = new sn_ws.RESTMessageV2();
        r.setEndpoint("https://app.harness.io/api/v1/incident/webhook");  // Replace with your Harness webhook URL
        r.setHttpMethod("post");
        r.setRequestHeader("Content-Type", "application/json");

        var usr = new GlideRecord('sys_user');
        usr.get('sys_id', current.getValue("caller_id"));
        var reported_by_email = usr.getValue('email');

        var number = current.getValue("number");
        var opened_at = current.getValue("opened_at");
        var impact = current.getValue("impact");
        var urgency = current.getValue("urgency");
        var short_description = current.getValue("short_description");
        var description = current.getValue("description");
        var category = current.getValue("category");
        var priority = current.getValue("priority");
        var sys_id = current.getValue("sys_id");
        var subcategory = current.getValue("subcategory");
        var state = current.getValue("state");

        var instanceUrl = gs.getProperty('glide.servlet.uri');
        var incident_url = instanceUrl + "nav_to.do?uri=/incident.do?sysparm_query=number=" + number;

        var obj = {
            "number": number,
            "reported_by_email": reported_by_email,
            "opened_at": opened_at,
            "impact": impact,
            "urgency": urgency,
            "short_description": short_description,
            "description": description,
            "category": category,
            "priority": priority,
            "sys_id": sys_id,
            "subcategory": subcategory,
            "state": state,
            "incident_url": incident_url
        };

        var body = JSON.stringify(obj);
        gs.info("AI SRE webhook payload: " + body);
        r.setRequestBody(body);

        var response = r.execute();
        gs.info("AI SRE webhook HTTP status: " + response.getStatusCode());
        gs.info("AI SRE webhook response: " + response.getBody());

    } catch (ex) {
        gs.error("Error sending webhook to AI SRE: " + ex.message);
    }

})(current, previous);

Testing the Integration

1. Create a Test Incident

   • Create a new incident in ServiceNow to trigger the business rule

2. Check System Logs

   • Go to System Logs > All
   • Confirm log output containing "AI SRE webhook payload" and response information

3. Verify in Harness AI SRE

   • Log into your Harness AI SRE account
   • Navigate to the Incidents section
   • Confirm the incident was created with the correct data

important fields

Ensure that all required fields are included in the webhook payload. The minimum fields needed for proper incident creation are: number, short_description, state, and priority.
